Product Description

BENTOCLINE® provides a high-performance barrier solution for landfills, mining operations, canals, ponds, and other waterproofing applications where leakage prevention is critical. It has zero permeability (k approximately equal to 5x10⁻¹³ m/s). By combining the natural swelling properties of bentonite clay with durable geosynthetic layers, it delivers superior self-sealing performance even if punctured or damaged, offering long-term environmental containment and protection while eliminating the need for frequent repairs or maintenance. Its efficient design minimizes the need for thick compacted clay liners, lowering material, transport, and installation costs while ensuring reliable containment across diverse site conditions.

Inquire Now

Product Benefits

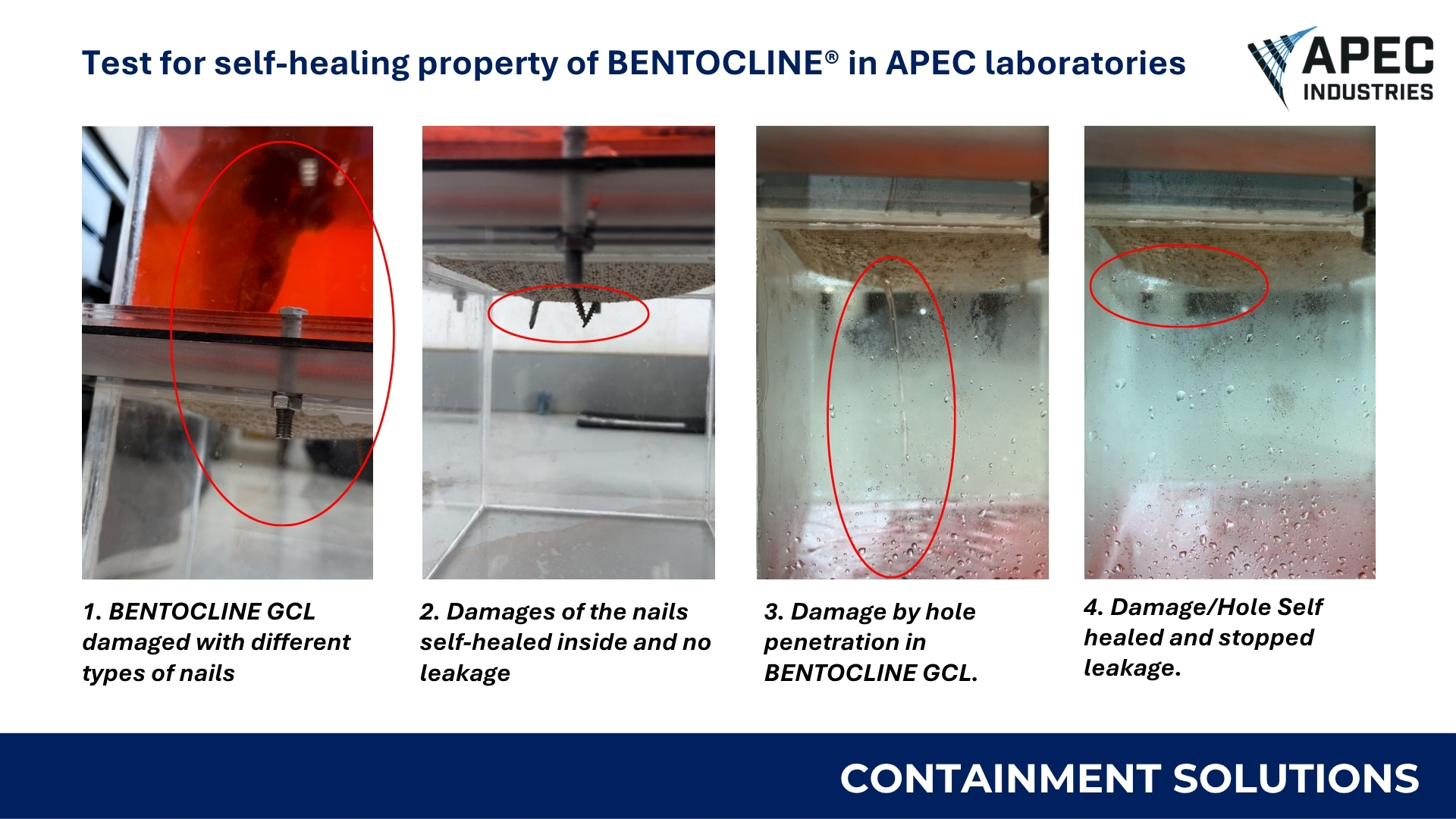

Self-healing property allows for automatic sealing of punctures.

Zero permeability

Almost zero maintenance

Longer service life for structures

Flexible, easy to install

Durable under tough conditions

High internal shear

Factory-controlled Quality

Product Function

Separation
Separation
Containment
Containment
Reinforcement
Reinforcement

Common Applications

Common Applications

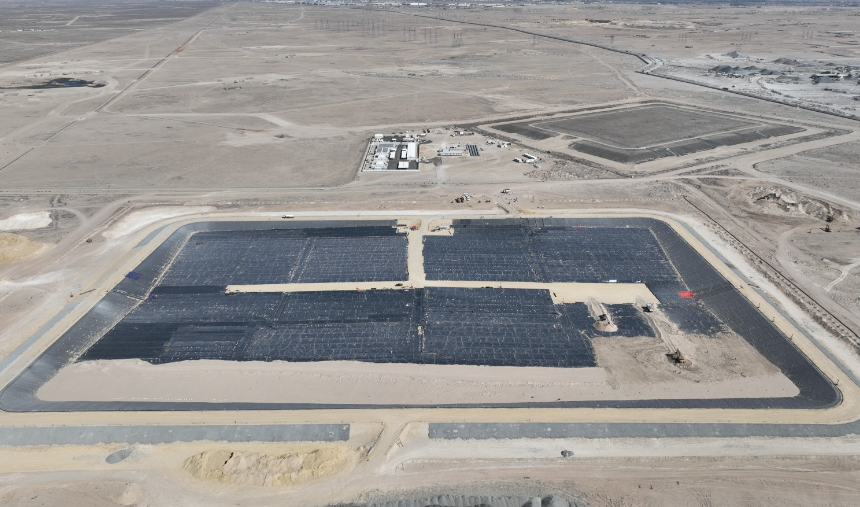

  • • Base and side slope lining solutions for effective leachate management in landfills.
  • • Lining of ponds, lakes, and reservoirs .
  • • Lining of canals and channels.
  • • Impermeable barrier within the dams and dikes .
  • • Fuel spillage containment.
  • • Erosion control on slopes.
  • • Environmental lining of roads.
  • • Groundwater protection.
  • • Waterproofing of basements.

What makes BENTOCLINE ® better than alternatives?

Saltstop Illustration 1
Quality depends on workmanship Factory-controlled quality

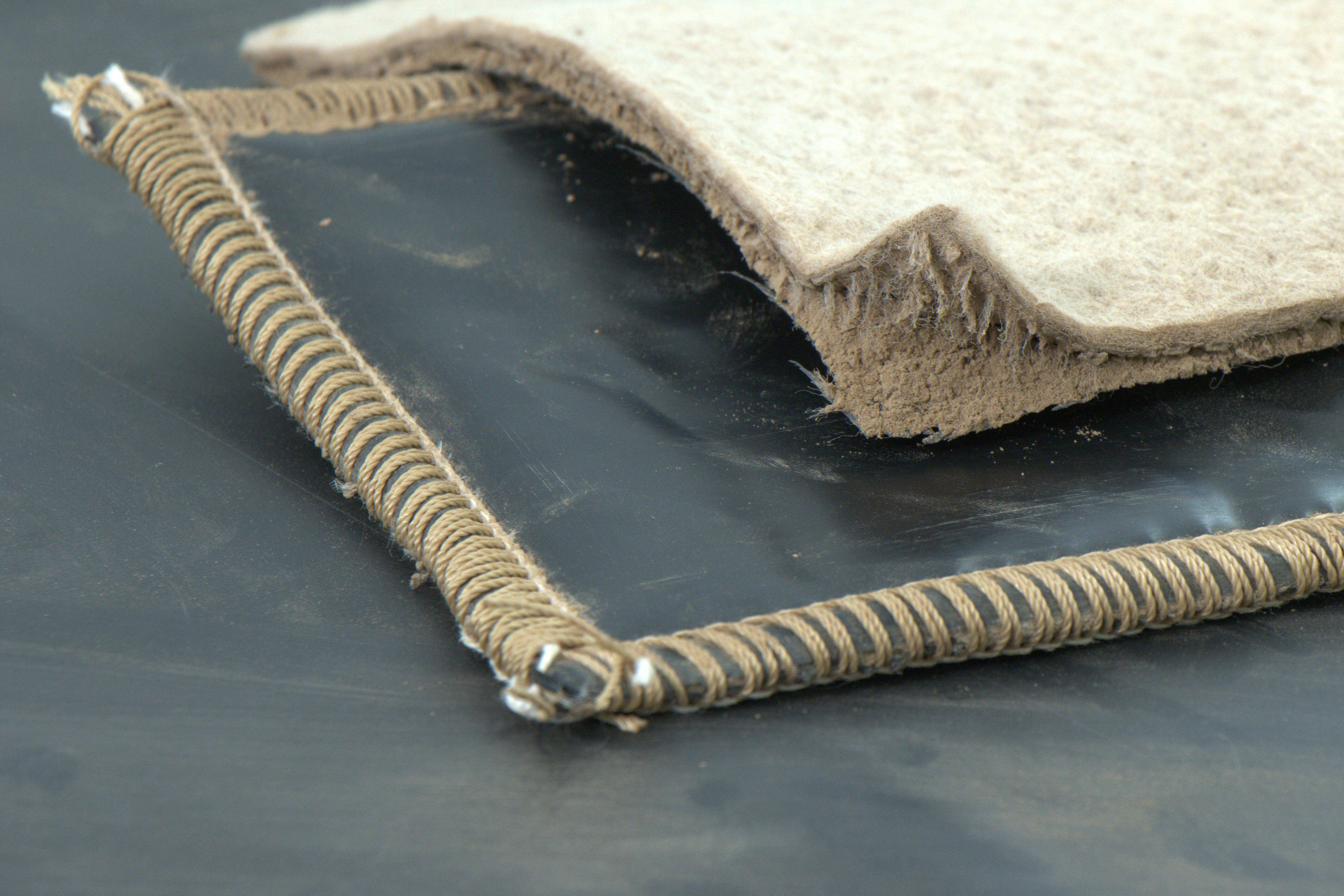

A thick layer (1-3 meters) of natural soil with high clay content.  A thin layer (approximately 6 mm) of bentonite clay encapsulated between geotextiles.
Hydraulic conductivity is highly dependent on on-site compaction quality, moisture content, and clay source. Performance is variable. Provides low, consistent hydraulic conductivity due to factory control. Performance is predictable and often superior.
Requires use of natural resources Conserves natural resources
Heavy Lightweight, flexible, easy to handle
Time-consuming installation Faster installation
High transportation demand Lower transportation vehicle demand
Requires heavy equipment Lesser heavy equipment requirement
High material and labor cost Cost-effective
High carbon footprint Lesser carbon footprint

Basic Product Specifications

Properties of Geocomposite Unit ST
Composite Thickness mm 5.0 - 7.0
Hydraulic Conductivity m/s 1.5x10-11 (+0.5x10-11)
Index Flux m3/m2/s 3 x 10-9 (+0.5x10-9)
